2QP0225Txx

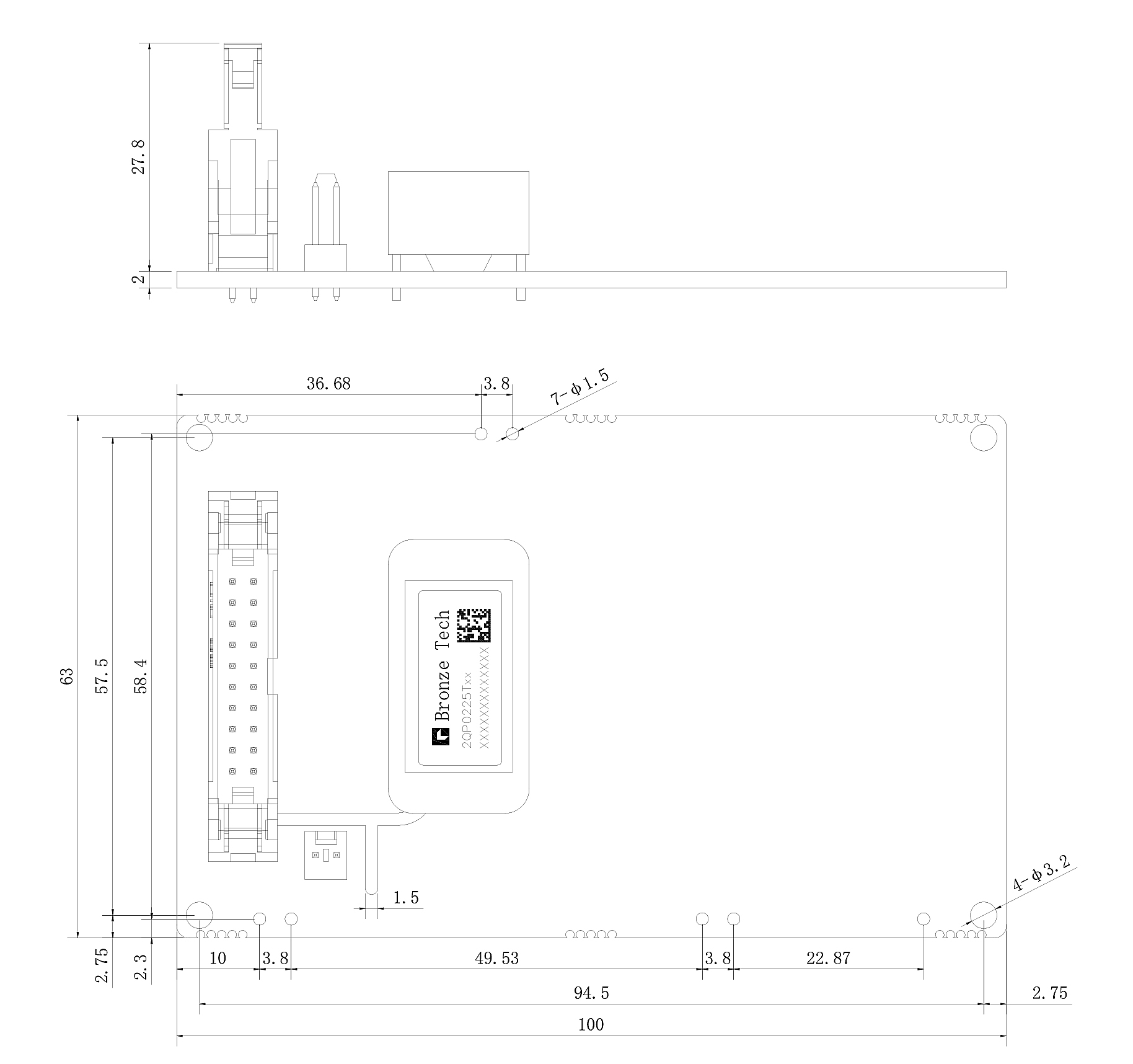

2QP0225Txx is a dual-channel compact plug-and-play gate driver designed for high reliability applications based on the ASIC chipset developed by Bronze Technologies.
2QP0225Txx is suitable for 2-level topologies built with EconoDUAL™ package lGBT modules up to 1700V. The plug-and-play capability of the driver allows immediate operation without adaptions after assembly.
Features
Dual-channel IGBT plug-and-play gate driver |
Blocking voltage up to 1700V |
Peak current ±25A, 2W output power per channel |
Direct / half-bridge mode available |
Primary/secondary side undervoltage lockout |
IGBT short-circuit protection integrated |
Advanced active clamping integrated |
Soft shut down integrated |
Key parameters
| Maximum Voltage of Power Device | 1700V | Maximum Switching Frequency | 200kHz |
| Turn-ON Voltage | 15V | Turn-OFF Voltage | -10V |
| Driving Power | 2W | Gate Driving Current | ±25A |
| Power Supply Voltage | 15V | Maximum Supply Current | 400mA |
| Operating Temperature | -40~+85℃ | Primary and Secondary Side Insulation Voltage | 5000Vac |
